Elite series is occupied with two outputs. The second output can be scheduled on/off, setting cut-off voltage or SOC and discharging time via LCD setting. It facilitates users smart load control. Designed with 27A PV input current, Elite series is compatible with the market trend of increased Imp in solar panels. It also allows a wide PV input voltage range from 60VDC to 450VDC. These features allow fewer solar panels required in the system and save space.
Features
- Dual outputs for smart load management
- Maximum PV input current 27A
- Wide PV input voltage range 60VDC ~ 450VDC
- Detachable LCD control module with various communications
- Built-in WiFi for mobile monitoring (App is available)
- Supports USB On-the-Go function
- Reserved communication port (RS-485, CAN-BUS or RS-232) for BMS
- Battery equalization extends lifecycle
- Battery independency
- User-friendly LCD operation
- Replaceable fan design
Icons/Text
- Solution
- Fan
- Personal Website
- Dual Outputs
| GENERAL | |

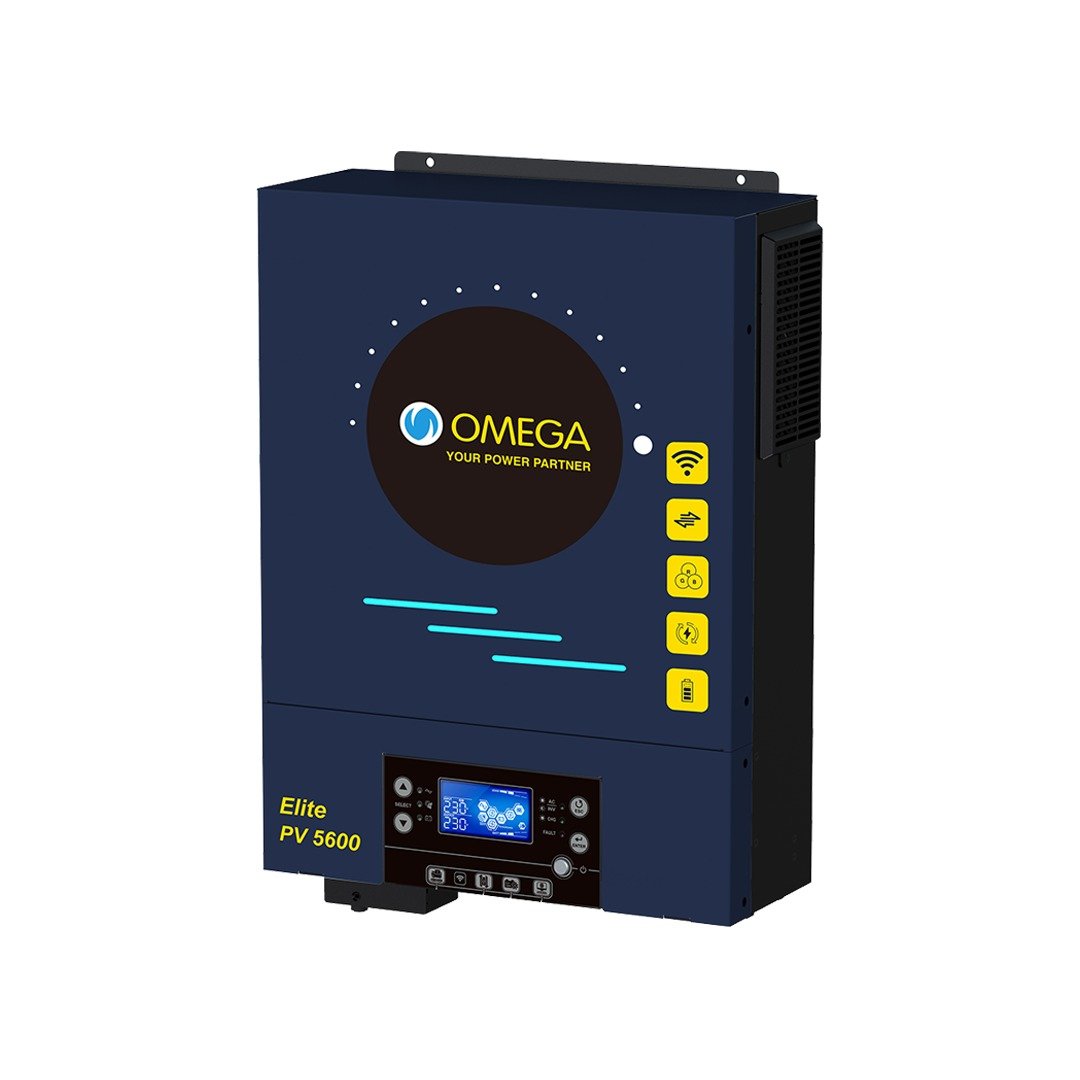

| Model | Elite PV 5600 |
| Rated Power | 4000VA / 4000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range |
170–280 VAC (For Personal Computers) 90–280 VAC (For Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Battery Mode) | 230VAC ±10% |
| Surge Power | 8000VA |
| Efficiency (Peak) | 93% |
| Transfer Time |
10ms (For Personal Computers) 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 5600W |
| MPP Range @ Operating Voltage | 60–450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 40A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimensions (D × W × H) | 115 × 300 × 435 mm |
| Net Weight | 9 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% – 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
