Features
• User-friendly LCD setting and intuitive LED design
• Easy access cable design with sliding door
• Dual inputs and Dual outputs for smart energy management
• Built-in DC, AC breaker, PV DC switch
• New wall mount bracket design
• Parallel operation with 6 units
| Model | |

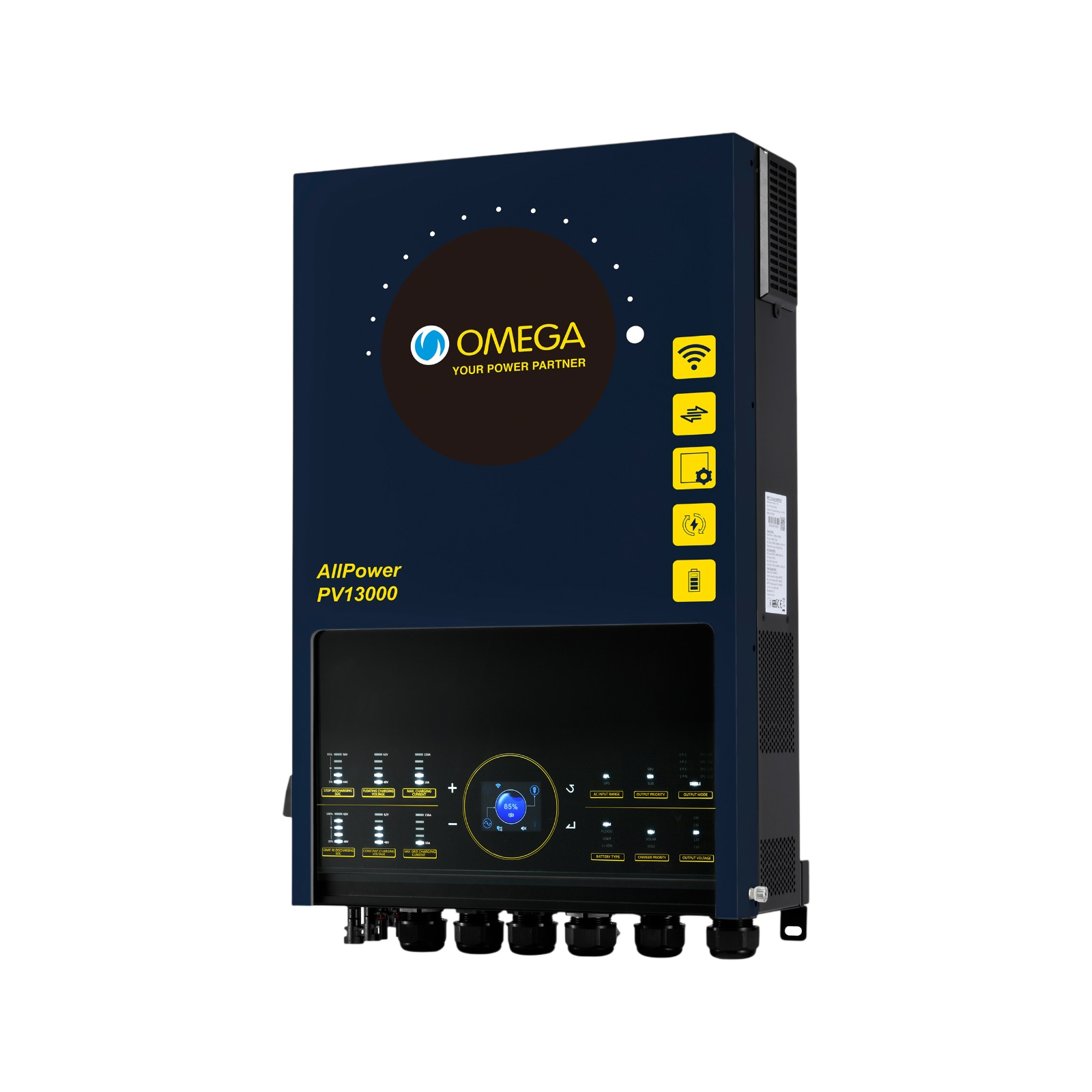

| Model | AllPower PV13000 |
| Rated Inverter Power | 8000VA/8000W |
| Parallel Capability | YES, 6 units |
| Input | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Output | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 16000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| Battery | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 12000W (6000W x 2) |
| MPP Range @ Operating Voltage | 90 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27A x 2 (MAX. 40A) |
| Maximum Solar Charge Current | 150A |
| Maximum AC Charge Current | 150A |
| Maximum Charge Current | 150A |
| Physical | |
| Dimension, D x W x H (mm) | 176.2 x 432.4 x 687 |
| Net Weight (kgs) | 30 |
| Communication Interface | USB/RS232/RS485/Wifi/Dry-contact |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Standard | |
| Compliance Safety | IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12 |
| Product specifications are subject to change without further notice. | |
