Features
- Dual outputs for smart load management
- Maximum PV input current increases to 27A
- Wide PV input voltage range 60VDC – 450VDC
- Battery-independent design
- Built-in 120A MPPT solar charger
- Battery equalization function to optimize battery performance and extend lifecycle
| Specification | Details |

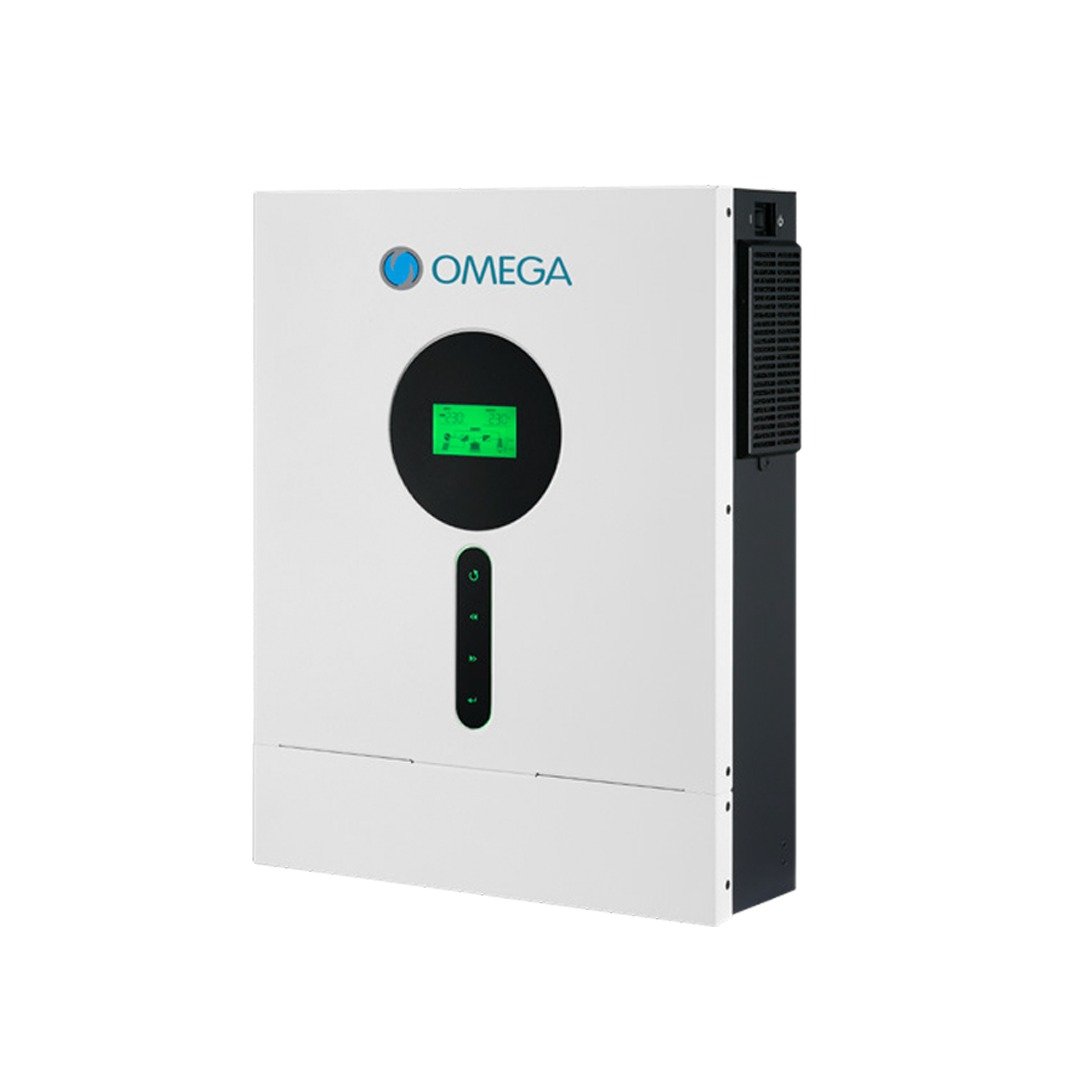

| Model | Elite 3.6kW |
| Rated Power | 3600VA / 3600W |
| Input | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (For Personal Computers) 90–280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto Sensing) |
| Output | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 7200VA |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Dual Outputs | Yes |
| Battery | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 5000W |
| Maximum PV Input Current | 27A |
| MPP Range @ Operating Voltage | 60–450 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| Physical | |
| Dimension (D × W × H) | 107 × 322.6 × 420.3 mm |
| Net Weight | 9.5 kgs |
| Communication Interface | USB / RS-232 |
| Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
