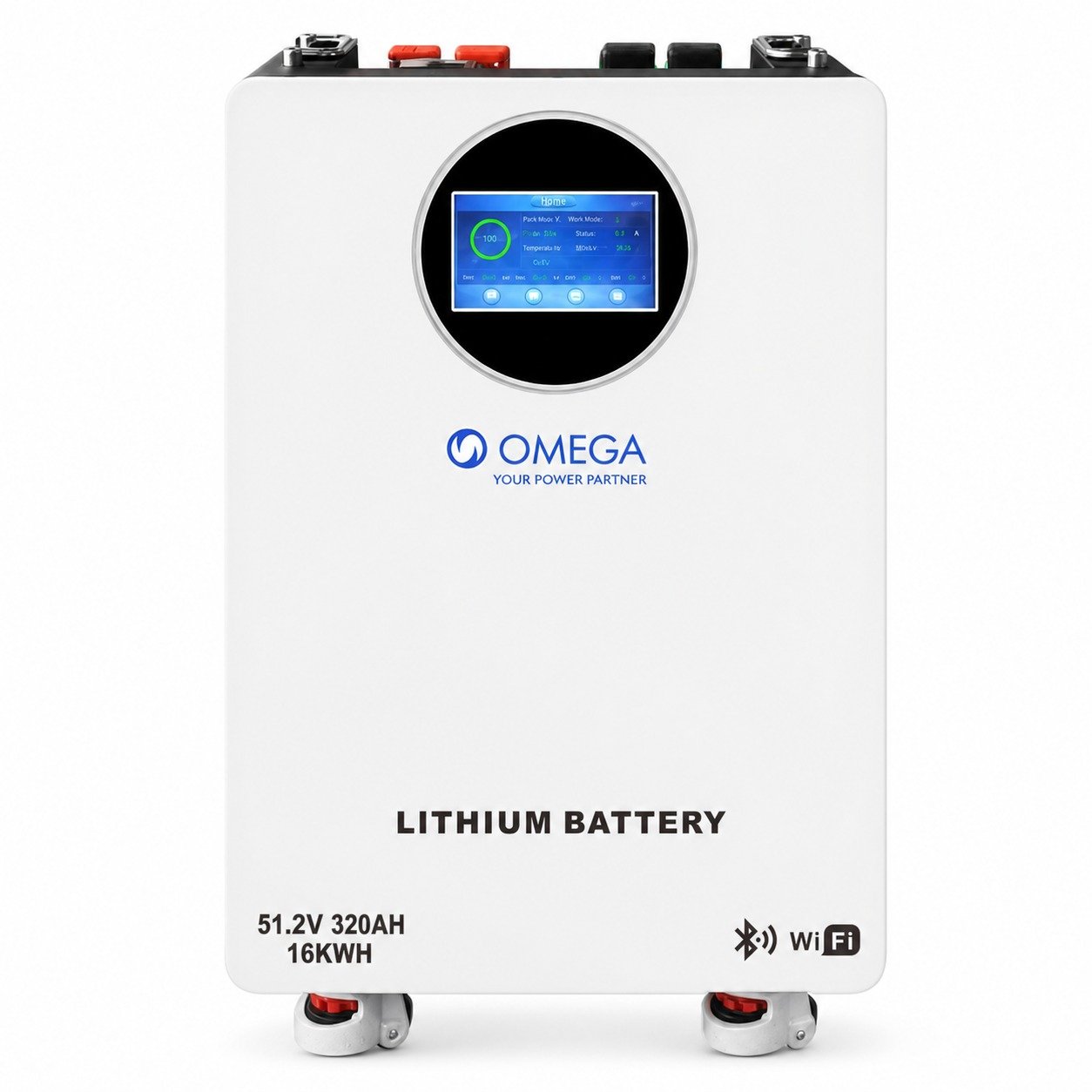

OMEGA Wall Stand Lithium Battery Pack 320Ah With 8000+Cycles

LiFePO₄ battery with 8000+ cycles and 10+ years of service life.
Smart BMS (100A–300A) with full protection and CAN/RS485 support.
Wi-Fi/Bluetooth monitoring with a multilingual touchscreen display.
Compatible with 10+ inverter brands and expandable up to 15 units in parallel.
5-year warranty, IP20 protection, and certified for safe, reliable performance.

Categories: BATTERIES

Specification	Details
Battery Type	LiFePO₄ Lithium Battery
Models	51.2V 320Ah
Usable Energy	Up to 29.5kWh (90% DoD)
Cycle Life	8000+ Cycles
Nominal Voltage	51.2V
Charge Voltage	57.6V
Float Voltage	56.6V
Cut-off Voltage	48.0V
Max Charge Current	160A / 300A
Max Discharge Current	200A / 300A
Communication	CAN, RS485, Wi-Fi, Bluetooth
Scalability	Up to 15 Batteries in Parallel
Safety	Smart BMS, Fire Protection, Temperature Sensor
Protection	Overcharge, Over-discharge, Overcurrent, Short Circuit, Over Temperature
Operating Temperature	-10°C to +50°C
Storage Temperature	0°C to 30°C
Humidity	0–95% (Non-condensing)
Certification	UN38.3, MSDS
Warranty	5 Years
Display	4.3″ / 7″ Touchscreen (Optional)
